500-00

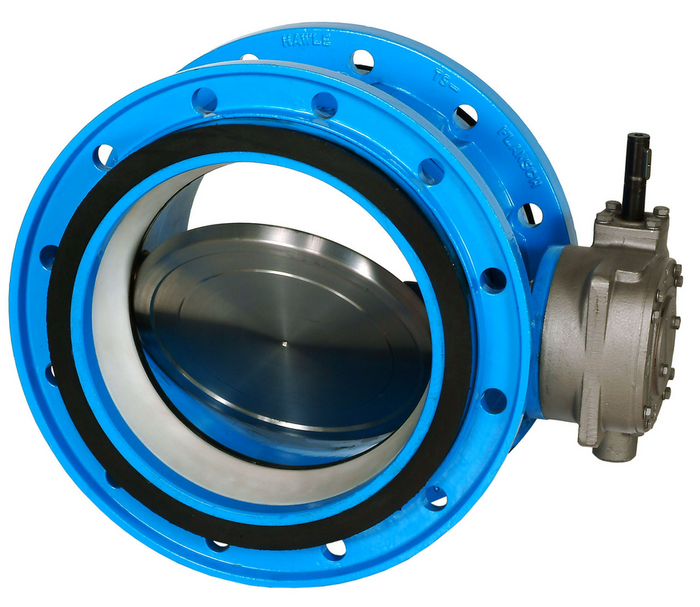

PRO KLAPPE® butterfly valve with restraint loose flanges

The PRO KLAPPE® butterfly valve is provided with a proportional action sealing system. The sealing is accommodated in the body of the butterfly valve. When open, the same pressure is admitted to the butterfly valve from all sides, thus reliably preventing unintended deformations of the gasket. As soon as the PRO butterfly valve is moved to closed position, the valve seal is pressed against the valve disc. The contact pressure depends on the water pressure.

The proportional action sealing system ensures reliable sealing, on the one hand, and a long service life due to low wear of the sealing, on the other hand.

The PRO KLAPPE® butterfly valve is provided with the same loose flange system as the exchange gate valve. Therefore, apart from being used in new constructions, the butterfly valve is mainly suitable for exchanging existing valves. The flat gaskets are already included in the barrel gaskets. Therefore, no keying is required between the flanges.
Moreover, the loose flange system has some advantages in terms of storage.
Apart from its real function as shut-off valve, the PRO KLAPPE® butterfly valve can also be used as dismantling piece because of the integral loose flange system (no additional dismantling piece required).

Face-to-face dimension: standard series 14 acc. to DIN EN 558-1. Flange mating dimensions: acc. to EN 1092-2

read more reduce
Material: Body / loose flanges: GJS-400, epoxy powder coated
Disc/shaft: stainless steel
Seat seal: EPDM (reinforced by a ring of stainless steel)
Supporting ring: DN 200: of POM, DN 500 and higher: stainless steel
Barrel gasket: EPDM
Medium

The PRO KLAPPE® butterfly valve is provided with a proportional action sealing system. The sealing is accommodated in the body of the butterfly valve. When open, the same pressure is admitted to the butterfly valve from all sides, thus reliably preventing unintended deformations of the gasket. As soon as the PRO butterfly valve is moved to closed position, the valve seal is pressed against the valve disc. The contact pressure depends on the water pressure.

The proportional action sealing system ensures reliable sealing, on the one hand, and a long service life due to low wear of the sealing, on the other hand.

The PRO KLAPPE® butterfly valve is provided with the same loose flange system as the exchange gate valve. Therefore, apart from being used in new constructions, the butterfly valve is mainly suitable for exchanging existing valves. The flat gaskets are already included in the barrel gaskets. Therefore, no keying is required between the flanges.
Moreover, the loose flange system has some advantages in terms of storage.
Apart from its real function as shut-off valve, the PRO KLAPPE® butterfly valve can also be used as dismantling piece because of the integral loose flange system (no additional dismantling piece required).

Face-to-face dimension: standard series 14 acc. to DIN EN 558-1. Flange mating dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.

DN
PN
L

B
B1
B max.
H
D �
Unit
Height
T
Type
Width
Length
 Medium Weight Specification 3D Basket
5001500000
 150 10/16 210 mm 341 mm 156 mm 381 mm 336 mm 285 mm Plant installation 13.2" (336 mm)   Flange 13.4" (341 mm) 8.3" (210 mm) 49,38 LBS
5002000060
 200 16 230 mm 412 mm 192 mm 460 mm 366 mm 345 mm Plant installation 14.4" (366 mm)   Flange 16.2" (412 mm) 9" (230 mm) 97,00 LBS
5003000060
 300 16 270 mm 520 mm 245 mm 573 mm 446 mm 455 mm Plant installation 17.6" (446 mm) 5 mm Flange 20.4" (520 mm) 10.6" (270 mm) 182,98 LBS
5004000060
 400 16 310 mm 696 mm 329 mm 744 mm 585 mm 580 mm Plant installation 23" (585 mm) 25 mm Flange 27.4" (696 mm) 12.2" (310 mm) 343,92 LBS
5005000060
 500 16 350 mm 855 mm 400 mm 925 mm 807 mm 715 mm Plant installation 31.8" (807 mm) 56 mm Flange 33.7" (855 mm) 13.8" (350 mm) 674,61 LBS
5006000060
 600 16 390 mm 1049 mm 494 mm 1135 mm 888 mm 840 mm Plant installation 35" (888 mm) 83 mm Flange 41.3" (1049 mm) 15.3" (390 mm) 992,08 LBS
Wish List

Please note: handwheel is not included in the scope of supply (see product supplements)!
