Air valve set for potable water 993-03
Technical features
| Operating pressure | 250 PSI (17.2 bar) |
| venting cross-section | 2,33 in² (1.500 mm²) |
| ventilation cross-section | 0,31 in² (200 mm²) |
| Max. venting capacity | 453,2 cfm (770 m³/h) |
| Area of application | Buried installation |
Materials
Cover: PE-HD
Valve:
Body: Stainless steel 316
Diaphragm: EPDM
Float: Polypropylene
Valve:
Body: Stainless steel 316
Diaphragm: EPDM
Float: Polypropylene
Further information
Description
Downloads
Description:

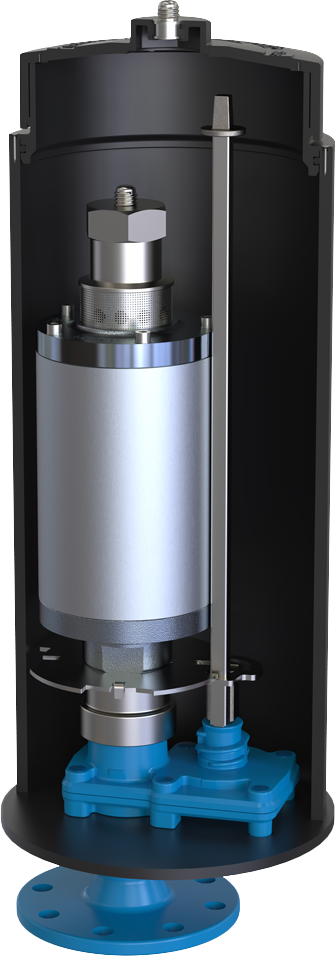

This air valve set consists of a shaft with a shut-off facility and an air valve. Due to its compact design, the air valve set replaces complex and high-maintenance manhole constructions. All maintenance and repair work can be carried out from the terrain surface, thus avoiding the dangers possibly related with the access of manholes. We recommend the installation of a seepage hose in combination with seepable backfilling.
The air valve featuring the patented roll-on diaphragm technology is perfectly suitable both for taking in and releasing high amounts of air during filling or draining of pipelines and for releasing major amounts of air under operating pressure. The AV operates continuously from 0 to 250 PSI (0 to 17.2 bar), perfectly sealing even in unpressurized condition. The sealing principle with a roll-on diaphragm helps to absorb pressure surges. Due to the high air intake capacity, the air release vlave is additionally provided with effective vacuum protection.
The shut-off unit included in the BEG can be opened and closed from the road surface with the help of a valve key.
Working range: 0 - 250 PSI (0 -17.2 bar)
Pipe covers: 1,00 m, 1,25 m, 1,50 m, 1,75 m
Max. release cross section: 1.500 mm2
Cross section of in-service ventilation: max. 200 mm2
Special functions on request:
- With closing aid for more active closing (e.g., for well pipes between the pump and water preparation, high-level tank or pure water container, well mouth, for venting the pressure line)
- Air release only or air intake only
- Installation in groundwater area
- Installation in high water area with flood protection
- can be shortened by 100 mm and extended to any length
The air valve featuring the patented roll-on diaphragm technology is perfectly suitable both for taking in and releasing high amounts of air during filling or draining of pipelines and for releasing major amounts of air under operating pressure. The AV operates continuously from 0 to 250 PSI (0 to 17.2 bar), perfectly sealing even in unpressurized condition. The sealing principle with a roll-on diaphragm helps to absorb pressure surges. Due to the high air intake capacity, the air release vlave is additionally provided with effective vacuum protection.
The shut-off unit included in the BEG can be opened and closed from the road surface with the help of a valve key.
Working range: 0 - 250 PSI (0 -17.2 bar)
Pipe covers: 1,00 m, 1,25 m, 1,50 m, 1,75 m
Max. release cross section: 1.500 mm2
Cross section of in-service ventilation: max. 200 mm2
Special functions on request:
- With closing aid for more active closing (e.g., for well pipes between the pump and water preparation, high-level tank or pure water container, well mouth, for venting the pressure line)
- Air release only or air intake only
- Installation in groundwater area
- Installation in high water area with flood protection
- can be shortened by 100 mm and extended to any length
