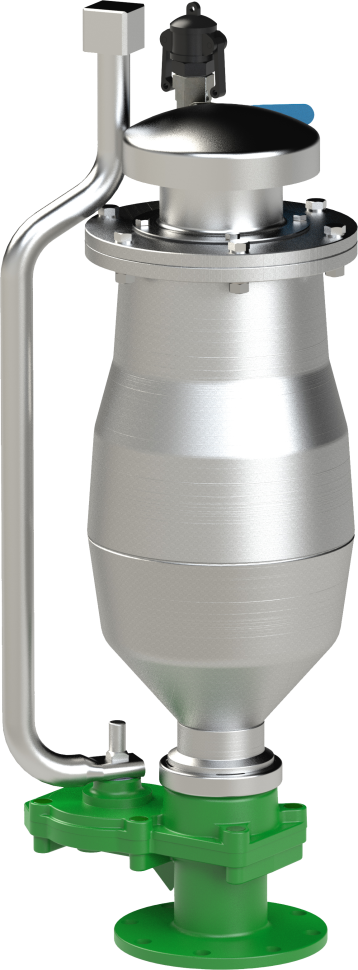

Automatic Air and Vacuum Valve with shut-off for manhole installation, for operating range: 0 - 250 PSI (17,2 bar)

Medium

Technical features

Connection	Flange
Operating pressure	250 PSI (17.2 bar)
ventilation cross-section	0,74 in² (480 mm²)
Continuous operation	yes
Max. venting capacity	258,97 cfm (440 m³/h)
Flushing connection	yes

Materials

Air valve body: stainless steel
Valve basket: POM
Dirt deflector: PP
Float spindle: stainless steel
Pressure spring: stainless steel
Float: stainless steel

Further information

Description Downloads

Models

Scroll to see more →

Grouped product items
Item number	Medium	Pipe Cover Depth	Range Of Pressure	Connection	Type	Body	A-Text	Qty
8889854414	waste water	4.2 ft (1.25 m)	0 - 250 PSI (0 - 17,2 bar)	4" ANSI	Flange	SS 316	8889854414 Specification: Automatic Air Release and Vacuum Valve, stainless steel 316, Operating Range: 0 – 250 PSI (Model # 986-01 ) Combination Air Valves shall conform to the following: Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The valve body and spindle spring shall be stainless steel, grade 316Ti, designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® ( POM ); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve and cam-lock fitting to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle		Diameter 10,748'' (273 mm) Height 38,189'' (970 mm) Width 12,796'' (325 mm) Square 1,969'' (50 mm) Weight 98,11 LBS Delivery Time by appointment
Diameter 10, 748'' (273 mm) Height 38, 189'' (970 mm) Width 12, 796'' (325 mm) Square 1, 969'' (50 mm) Weight 98, 11 LBS Delivery Time by appointment
