SKU
986-06

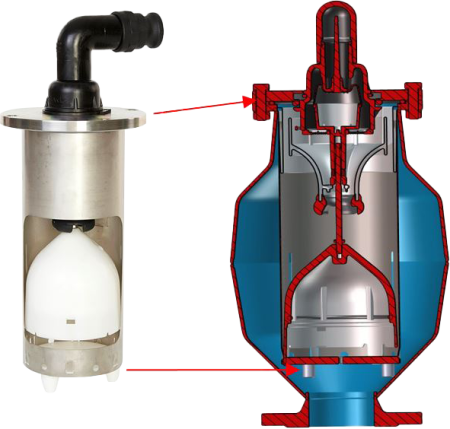

Automatic air release valve for oxidizer and filter tanks, stainless steel 316, for operating range: 0 – 150 PSI (10 Bar)

Medium
Models

Technical features

Operating pressure 150 PSI (10 bar)
Area of application Plant engineering

Materials

Valve body of stainless steel 316

Further information

Description Downloads

Models

Scroll to see more →
Grouped product items
Item number Medium operating pressure Connection Connection 2 Type Body A-Text Qty
8889860061
waste water waste water waste water
250 PSI (17.2 bar) 3" FNPT CAMLOK 1 1/2" Thread Stainless Steel
Diameter 3,74" (95 mm) Height 23,93" (608 mm) Width 10.75" (273 mm) Length 14,17" (360 mm) Length 1 5,23" (133 mm) Height 1 22,71" (577 mm) Height 2 10,75" (273 mm) Weight 35,94 LBS Delivery Time by appointment
8889860501
waste water waste water waste water
250 PSI (17.2 bar) 2" ANSI CAMLOK 1 1/2" Flange Stainless Steel
Diameter 6" (152,4 mm) Height 24,37" (619 mm) Width 10.75" (273 mm) Length 14,17" (360 mm) Length 1 5,23" (133 mm) Height 1 23,17" (588.5 mm) Height 2 11,22" (285 mm) Weight 41,01 LBS Delivery Time by appointment
8889860801
waste water waste water waste water
250 PSI (17.2 bar) 3" ANSI CAMLOK 1 1/2" Flange Stainless Steel
Diameter 7,5" (190,5 mm) Height 24,37" (619 mm) Width 10.75" (273 mm) Length 14,17" (360 mm) Length 1 5,23" (133 mm) Height 1 23,17" (588.5 mm) Height 2 11,22" (285 mm) Weight 46,08 LBS Delivery Time by appointment
8889861001
waste water waste water waste water
250 PSI (17.2 bar) 4" ANSI CAMLOK 1 1/2" Flange Stainless Steel
Diameter 9" (228,6 mm) Height 24,37" (619 mm) Width 10.75" (273 mm) Length 14,17" (360 mm) Length 1 5,23" (133 mm) Height 1 23,17" (588.5 mm) Height 2 11,22" (285 mm) Weight 49,60 LBS Delivery Time by appointment
