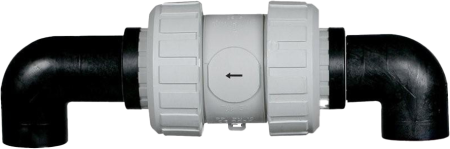

Cone check valve for ARV Model 986 Air release and flood prevention
Technical features
| Operating pressure | 250 PSI (17.2 bar) |
Materials
Inlet Fitting: PE 100, SDR 7, 1,5” MPT/1,5” FPT
Outlet Fitting: PE 100, SDR 7, 1,5” MPT, with Screen
Cone Check Valve: PP, S4 ND40, Teflon Coated Spring, Sockets 1,5” FPT
Outlet Fitting: PE 100, SDR 7, 1,5” MPT, with Screen
Cone Check Valve: PP, S4 ND40, Teflon Coated Spring, Sockets 1,5” FPT
Further information
Description
Downloads
Description:
For only air release function of H-TEC Automatic Air and Vacuum Release Valve, Model #986 - no air or water intake.
Prevention of flood water intake through air valves.
Easy and quick retrofitting into working air valves.
Vice versa usage possible; only air intake – no air release.
Technical Documents
