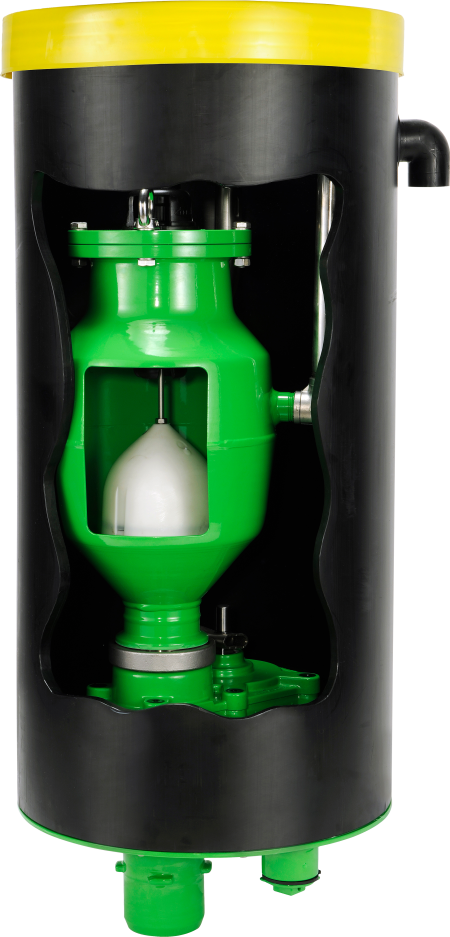

Model 986, ARV set for underground installation, for operating range: 0 – 250 PSI (17.2 Bar)

Medium

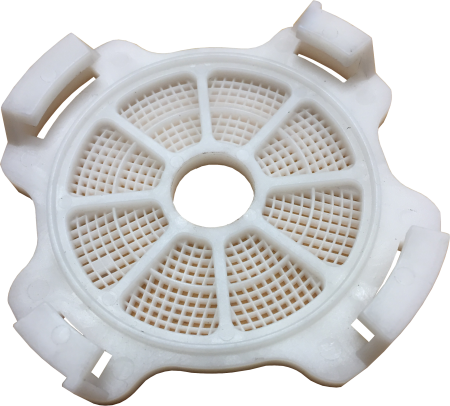

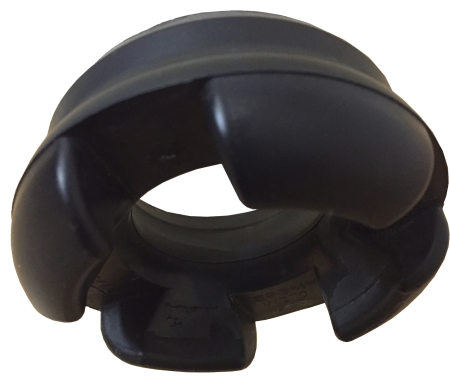

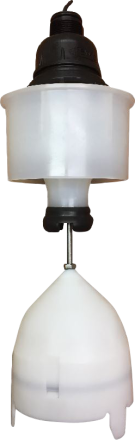

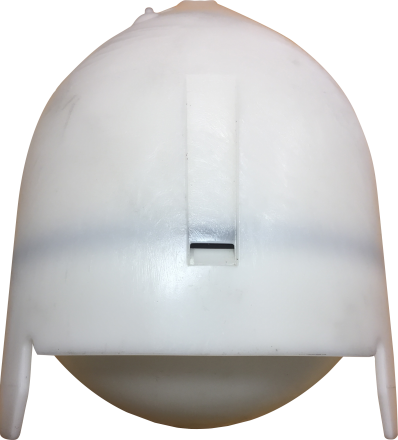

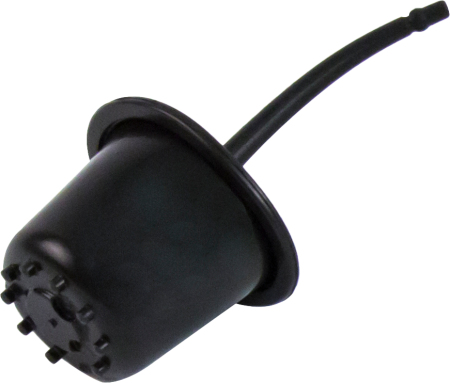

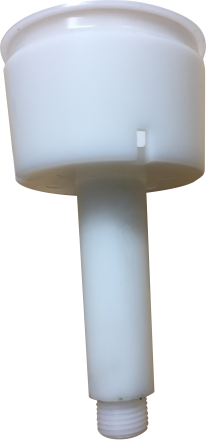

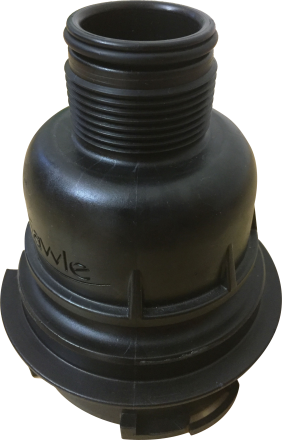

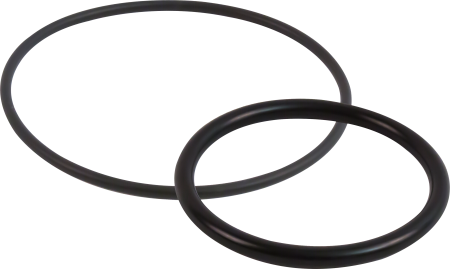

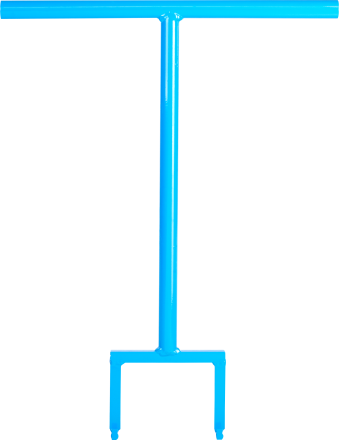

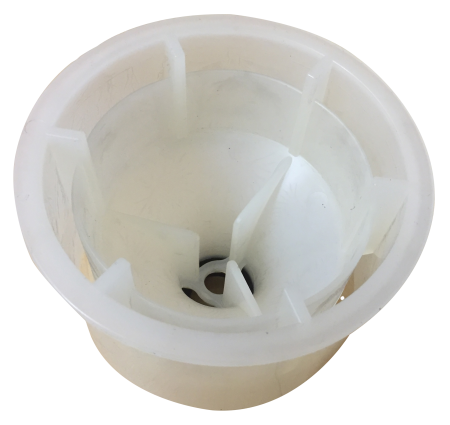

Models Product supplements Spareparts BIM Files

Technical features

Connection	Flange
Operating pressure	250 PSI (17.2 bar)
ventilation cross-section	0,74 in² (480 mm²)
Continuous operation	yes
Max. venting capacity	258,97 cfm (440 m³/h)
Flushing connection	yes
Area of application	buried, Main line

Materials

Shaft: PE
Air valve: see model no. 986

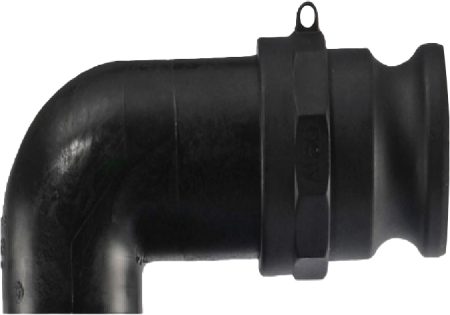

Outlet elbow: PE 100 with strainer of stainless steel

Further information

Description Downloads

Models

Scroll to see more →

Grouped product items
Item number	Medium	Pipe Cover Depth	operating pressure	Connection	Type	Body	A-Text
8881909104	waste water	3.3 ft (1.00 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Stainless Steel	8881909104 Medium: waste water Specification:Air Valve Set for Underground Installation, stainless steel Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The valve body and spindle spring shall be stainless steel grade 316Ti, designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® ( POM ); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 3.3 ft ( 1.00 m)	Height 33,26" (845 mm) Width 17.9" (455 mm) Length 20,74" (527 mm) Height 1 30,55" (776 mm) Weight 136,69 LBS Delivery Time by appointment
Height 33, 26" (845 mm) Width 17.9" (455 mm) Length 20, 74" (527 mm) Height 1 30, 55" (776 mm) Weight 136, 69 LBS Delivery Time by appointment
8881909124	waste water	4.2 ft (1.25 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Stainless Steel	8881909124 Medium: waste water Specification: Air Valve Set for Underground Installation, stainless steel Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The valve body and spindle spring shall be stainless steel grade 316Ti, designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® ( POM ); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.2 ft ( 1.25 m)	Height 41,85" (1063 mm) Width 17.9" (455 mm) Length 20,74" (527 mm) Height 1 38,97" (990 mm) Weight 147,71 LBS Delivery Time by appointment
Height 41, 85" (1063 mm) Width 17.9" (455 mm) Length 20, 74" (527 mm) Height 1 38, 97" (990 mm) Weight 147, 71 LBS Delivery Time by appointment
8881909154	waste water	4.9 ft (1.50 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Stainless Steel	8881909154 Medium: waste water Specification: Air Valve Set for Underground Installation, stainless steel Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The valve body and spindle spring shall be stainless steel grade 316Ti, designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® ( POM ); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.9 ft ( 1.50 m)	Height 51,69" (1313 mm) Width 17.9" (455 mm) Length 20,74" (527 mm) Height 1 48,82" (1240 mm) Weight 185,19 LBS Delivery Time by appointment
Height 51, 69" (1313 mm) Width 17.9" (455 mm) Length 20, 74" (527 mm) Height 1 48, 82" (1240 mm) Weight 185, 19 LBS Delivery Time by appointment
8889850104	waste water	3.3 ft (1.00 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Epoxy Coated	8889850104 Medium: waste water Specification: Air Valve Set for Underground Installation, epoxy coated Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The spindle spring shall be stainless steel grade 316Ti, the valve body shall be steel epoxy powder coated designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® (POM); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle. Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 3.3 ft ( 1.00 m)	Diameter 17,9" (455 mm) Height 33,26" (845 mm) Width 20,74" (527 mm) Height 1 30,55" (776 mm) Square 1,96" (50 mm) Weight 136,69 LBS Delivery Time by appointment
Diameter 17, 9" (455 mm) Height 33, 26" (845 mm) Width 20, 74" (527 mm) Height 1 30, 55" (776 mm) Square 1, 96" (50 mm) Weight 136, 69 LBS Delivery Time by appointment
8889850124	waste water	4.2 ft (1.25 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Epoxy Coated	8889850124 Medium: waste water Specification: Air Valve Set for Underground Installation, epoxy coated Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The spindle spring shall be stainless steel grade 316Ti, the valve body shall be steel epoxy powder coated designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® (POM); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle. Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.1 ft (1.25 m)	Diameter 17,9" (455 mm) Height 41,85" (1063 mm) Width 20,74" (527 mm) Height 1 38,97" (990 mm) Square 1,96" (50 mm) Weight 147,71 LBS Delivery Time by appointment
Diameter 17, 9" (455 mm) Height 41, 85" (1063 mm) Width 20, 74" (527 mm) Height 1 38, 97" (990 mm) Square 1, 96" (50 mm) Weight 147, 71 LBS Delivery Time by appointment
8889850154	waste water	4.9 ft (1.50 m)	250 PSI (17.2 bar)	3" ANSI	Flange	Epoxy Coated	8889850154 Medium: waste water Specification: Air Valve Set for Underground Installation, epoxy coated Operating Range: 0 – 250 psi, ( Model # 986-04 ) Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 250 psi ( 0 – 17,2 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, a mud deflector made of PE allows no contact between fluid and sealing area. The spindle spring shall be stainless steel grade 316Ti, the valve body shall be steel epoxy powder coated designed to facilitate disassembly for cleaning and maintenance. The float shall be Delrin® (POM); the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve, to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. The air valve set is provided with a PE shaft replacing a manhole, a shut-off device with a steel plate of hard-rolled stainless steel and straight-through bore when open, two maintenance outlets with hose connection and ball valve, lateral outlet for waste air with PE elbow as swivelling device equipped with additional protection grid, drain-off fitting at the shaft bottom. After closing the shut-off device by integrated operating tool and removal of the upper ball valve the air valve can be taken out of the shaft for maintenance purposes. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle. Connection: 3" Flange ANSI Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.9 ft (1.50 m)	Diameter 17,9" (455 mm) Height 51,69" (1313 mm) Width 20,74" (527 mm) Height 1 48,82" (1240 mm) Square 1,96" (50 mm) Weight 185,19 LBS Delivery Time by appointment
Diameter 17, 9" (455 mm) Height 51, 69" (1313 mm) Width 20, 74" (527 mm) Height 1 48, 82" (1240 mm) Square 1, 96" (50 mm) Weight 185, 19 LBS Delivery Time by appointment
