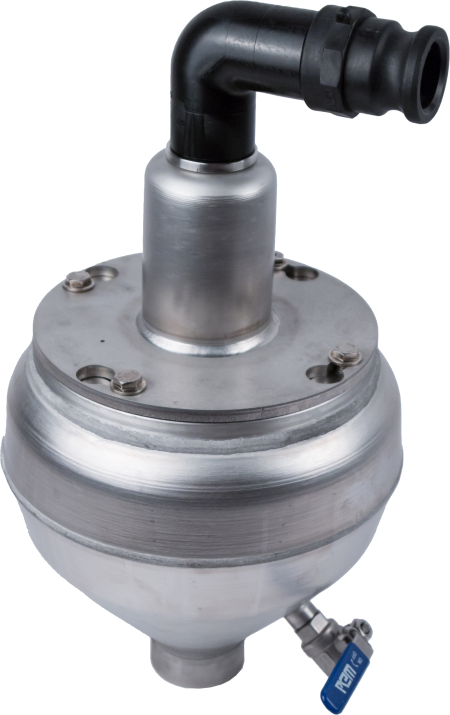

Model 989, Automatic air release and vacuum valve, short body, ss 316, for operating ranges: 0 – 150 PSI (10 Bar), outdoor application possible

Medium

Technical features

Connection	Female thread
Operating pressure	150 PSI (10 bar)
ventilation cross-section	0,74 in² (480 m³/h)
Continuous operation	yes
Max. venting capacity	100 cfm (170 m³/h)
Flushing connection	yes
Area of application	Plant engineering, Raw Water, Reclaim Water, Industrial application

Materials

All mechanical parts are manufactured of corrosion-resistant materials.

Further information

Description Downloads

Models

Scroll to see more →

Grouped product items
Item number	Medium	operating pressure	Connection	Connection 2	Type	A-Text	Qty
8889890041	waste water	150 PSI (10 bar)	2" FNPT	CAMLOK 1 1/2"	Thread	8889890041 Specification: Automatic Air Release and Vacuum Valve, Short Body 316Ti,Operating Range: 0 – 150 PSI (Model # 989-00 ) Combination Air Valves shall conform to the following: Automatic Air and Vacuum Valves shall be infinitely variable automatic air and vacuum valves designed to allow escape of air for a operating range starting from pressure range: 0,0 through 150 psi ( 0 – 10 bar ), close watertight when liquid enters the valve even when the fluid is rising without pressure ( no minimum operating pressure required), allow air to enter in the event of a vacuum, and soft working behaviour as water hammer inhibition realized by roll-on diaphragm and spring mechanism. When the sealing device of the valve is closed an air cushion is trapped between the fluid and sealing area, the design does not allow contact between fluid and sealing area. The valve body and spindle spring shall be stainless steel, grade 316Ti, designed to facilitate disassembly for cleaning and maintenance. The float shall be PP; the valve seat and all working parts shall be of corrosion resistant materials. Valves shall be equipped with the necessary attachments, including ball valve and cam-lock fitting to permit back flushing after installation without dismantling the valve. Valves shall be recommended by the manufacturer for wastewater service. Air and vacuum valves shall be manufactured by Hawle. Medium: waste water Connection: Thread, 2" FNPT Max. operating pressure: 150 PSI (10 bar)		Height 18,7" (475 mm) Width 10,24" (260 mm) Length 10,55" (268 mm) Height 1 17,48" (444 mm) Height 2 10,71" (272 mm) Weight 20,94 LBS Delivery Time by appointment
Height 18, 7" (475 mm) Width 10, 24" (260 mm) Length 10, 55" (268 mm) Height 1 17, 48" (444 mm) Height 2 10, 71" (272 mm) Weight 20, 94 LBS Delivery Time by appointment

Maintenance

fitting spareparts

All Spare Parts

989S02 spare part: Function Unit for model 989

Sewage

989S04 O-Rings

Sewage Water

989S05 spare part: Cup for Diaphragm

989S07 spare part: Float, complete

Sewage

989S09 Pressure Spring

Sewage
