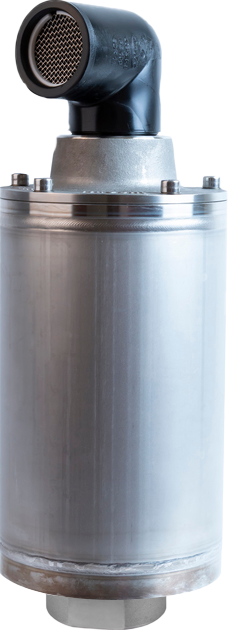

Model 993, HaVent® Automatic and infinitely variable air valve for potable water for operating range: 0 - 250 PSI (PN16)
Technical features
| Bottom connection | Female thread, Flange |
| Operating pressure | 250 PSI (17.2 bar) |
| venting cross-section | 2,33 in² (1.500 mm²) |
| ventilation cross-section | 0,31 in² (200 mm²) |
| Max. venting capacity | 412 cfm (700 m³/h) |
| Area of application | plant engineering |
Materials
Body: Stainless steel 316
Diaphragm: EPDM
Float: Polypropylene
Outlet elbow with screen: Polyethylene
Diaphragm: EPDM
Float: Polypropylene
Outlet elbow with screen: Polyethylene
Further information
Description
Downloads
Description:
HaVent® Automatic and infinitely variable air valve for potable water for operating range: 0 - 250 PSI (PN16)
The air valve with unique roll-on membrane is perfectly suitable to release major amounts of air under operating pressure. The sealing principle with roll-on membrane has a shock-absorbing effect.
The air valve operates continuously from 0 to 17,2 bar, perfectly tight even when unpressurized.
Please note: air valves contain compressed air. Prior to any maintenance work the air valve shall be put out of operation and depressurized!
The air valve featuring the patented roll-on diaphragm technology is perfectly suitable both for taking in and releasing high amounts of air during fi lling or draining of pipelines and for releasing major amounts of air under operating pressure. The AV operates continuously from 0 to 17,2 bar, perfectly sealing even in unpressurized condition. The sealing principle with a roll-on diaphragm helps to absorb pressure surges. Due to the high air intake capacity, the Air release valve is additionally provided with effective vacuum protection
- Very high air release and intake during operation infinitely variable from 0 to 250 psi (17,2 bar)
- Max. air release capacity: 250psi: 3,700 gal/m (500 cfm)
- Vacuum breaking function
- Corrosion resistant materials
- Ultraviolet resistance
- Ease of maintenance
- Virtually spill proof
The air valve with unique roll-on membrane is perfectly suitable to release major amounts of air under operating pressure. The sealing principle with roll-on membrane has a shock-absorbing effect.
The air valve operates continuously from 0 to 17,2 bar, perfectly tight even when unpressurized.
Please note: air valves contain compressed air. Prior to any maintenance work the air valve shall be put out of operation and depressurized!
The air valve featuring the patented roll-on diaphragm technology is perfectly suitable both for taking in and releasing high amounts of air during fi lling or draining of pipelines and for releasing major amounts of air under operating pressure. The AV operates continuously from 0 to 17,2 bar, perfectly sealing even in unpressurized condition. The sealing principle with a roll-on diaphragm helps to absorb pressure surges. Due to the high air intake capacity, the Air release valve is additionally provided with effective vacuum protection
- Very high air release and intake during operation infinitely variable from 0 to 250 psi (17,2 bar)
- Max. air release capacity: 250psi: 3,700 gal/m (500 cfm)
- Vacuum breaking function
- Corrosion resistant materials
- Ultraviolet resistance
- Ease of maintenance
- Virtually spill proof
Videos
Operating Instructions
Maintenance
fitting spareparts
All Spare Parts
009S00
Diaphragm
993S05
Compensating Disk
