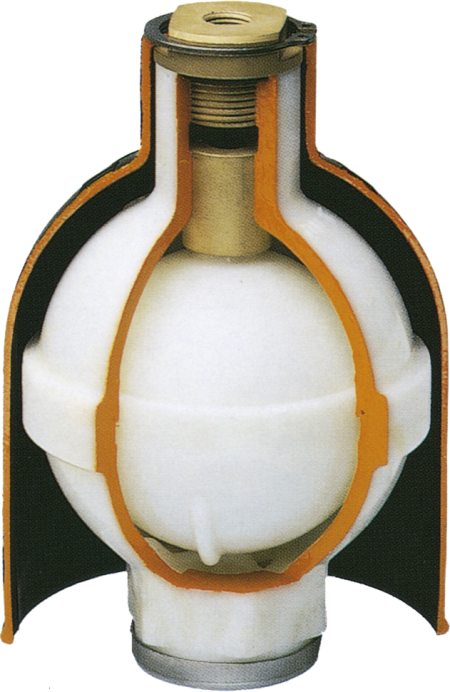

Model 996, 1” Automatic air release and vacuum valve
Technical features
| Connection | Female thread |
| Operating pressure | 250 PSI (17.2 bar) |
| ventilation cross-section | 0,003 in² (1,77 mm²) |
| Max. venting capacity | 4,59 cfm (7,8 m³/h) |
| Special functions | Only air release, Only air intake |
| Area of application | plant engineering |
Materials
Body: Delrin® (POM)
Orifice and valve plug: Aluminum Bronze
Float: Delrin® (POM)
Seal: Ethylene Propylene Diene Monomer (EPDM)
Protective cover: Polyethylene (PE)
Orifice and valve plug: Aluminum Bronze
Float: Delrin® (POM)
Seal: Ethylene Propylene Diene Monomer (EPDM)
Protective cover: Polyethylene (PE)
Further information
Description
Downloads
Description:
The single-orifice 1" air valve is suitable for intake and release of smaller quantities of air.
Please note: Air valves contain compressed air. Prior to any maintenance work the air valve shall be put out of operation and depressurized!
Maximum Air Release Capacity: 4.6 CFM (7.8 m³/hr)
Test pressure: 350 PSI (24.1 Bar)
Operating pressure: 11.6 – 250 PSI (0.8 – 17.2 Bar)
Maximum Temperature of Medium: 86° F (30° C), Potable Water
Please note: Air valves contain compressed air. Prior to any maintenance work the air valve shall be put out of operation and depressurized!
Maximum Air Release Capacity: 4.6 CFM (7.8 m³/hr)
Test pressure: 350 PSI (24.1 Bar)
Operating pressure: 11.6 – 250 PSI (0.8 – 17.2 Bar)
Maximum Temperature of Medium: 86° F (30° C), Potable Water
Operating Instructions
