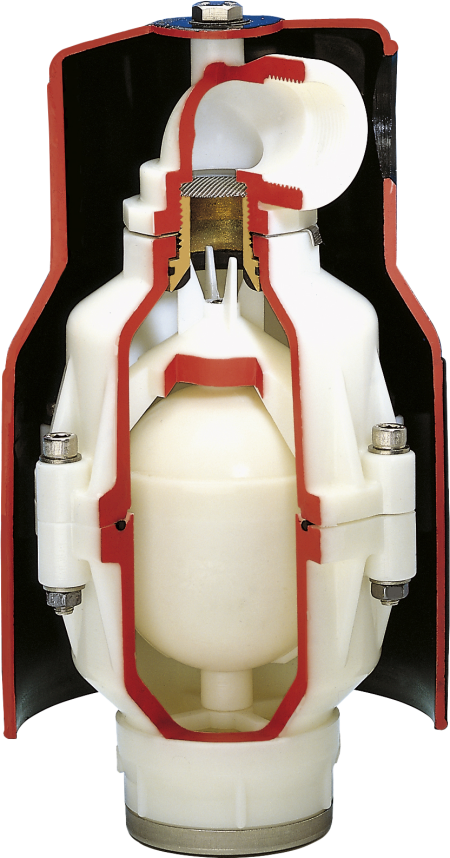

Model 997, 2” Automatic air release and vacuum valve

Name: Model 997, 2” Automatic air release and vacuum valve
SKU: 997-00-H
Availability: InStock

Models

Body and connecting elbow: POM
Float: POM
Valve gasket:EPDM (for potable water)EPDM
UV protective cap: PE

Description Downloads

Scroll to see more →

Grouped product items
Item number	Medium	Range Of Pressure	minimum inlet pressure	Type	A-Text	Qty
8889875630	water	14.5 - 250 PSI (1.0 - 17.2 bar)	2" FNPT	Thread	8889875630 Specification: Air Valve For Water Service ( Model # 997; 2” ) The valve shall be a combination air/vacuum – double orifice automatic air release valve with 2” connection to the pipeline. The valve shall be of one piece body design. The internal parts shall have a small orifice within tripod for small air discharge and a big orifice within bonnet of base housing for main air discharge and allow air to enter in the event of a vacuum condition. The material of the body and the flow shall be Delrin® ( Polyoximethylene, POM ). The valve sealing is rubber made of EPDM. The valve shall have a protection cap of PE. Air and vacuum valves shall be manufactured by Hawle Medium: potable water Inlet: Thread, 2" FNPT Range of Pressure: 14.5 -250 PSI (1.0 - 17.2 bar)		Diameter 6,3"(160 mm) Height 12.0" (305 mm) Width 6,9" (175 mm) Height 1 12,6" (320 mm) Weight 5,18 LBS Delivery Time by appointment
Diameter 6, 3"(160 mm) Height 12.0" (305 mm) Width 6, 9" (175 mm) Height 1 12, 6" (320 mm) Weight 5, 18 LBS Delivery Time by appointment
