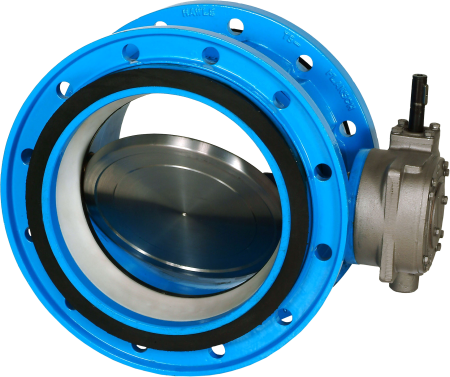

PRO KLAPPE® butterfly valve with restraint loose flanges

Medium

Models

Nominal width: DN 150, DN 200, DN 300, DN 400, DN 500, DN 600
Pressure nominal: 10/16, 16

Materials

Body / loose flanges: GJS-400, epoxy powder coated
Disc/shaft: stainless steel
Seat seal: EPDM (reinforced by a ring of stainless steel)
Supporting ring: DN 200: of POM, DN 500 and higher: stainless steel
Barrel gasket: EPDM

Further information

Description Downloads

Models

Scroll to see more →

Grouped product items
Item number	Medium	Type	A-Text
5001500000	water	Flange	5001500000 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 150 PN 16	Height 13.2" (336 mm) Width 13.4" (341 mm) Weight 49,38 LBS Delivery Time by appointment
Height 13.2" (336 mm) Width 13.4" (341 mm) Weight 49, 38 LBS Delivery Time by appointment
5002000060	water	Flange	5002000060 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 200 PN 16	Height 14.4" (366 mm) Width 16.2" (412 mm) Weight 97,00 LBS Delivery Time by appointment
Height 14.4" (366 mm) Width 16.2" (412 mm) Weight 97, 00 LBS Delivery Time by appointment
5003000060	water	Flange	5003000060 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 300 PN 16	Height 17.6" (446 mm) Width 20.4" (520 mm) Weight 182,98 LBS Delivery Time by appointment
Height 17.6" (446 mm) Width 20.4" (520 mm) Weight 182, 98 LBS Delivery Time by appointment
5004000060	water	Flange	5004000060 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 400 PN 16	Height 23" (585 mm) Width 27.4" (696 mm) Weight 343,92 LBS Delivery Time by appointment
Height 23" (585 mm) Width 27.4" (696 mm) Weight 343, 92 LBS Delivery Time by appointment
5005000060	water	Flange	5005000060 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 500 PN 16	Height 31.8" (807 mm) Width 33.7" (855 mm) Weight 674,61 LBS Delivery Time by appointment
Height 31.8" (807 mm) Width 33.7" (855 mm) Weight 674, 61 LBS Delivery Time by appointment
5006000060	water	Flange	5006000060 Resilient-seated butterfly valve, with proportional action sealing system, with two restraint loose flanges acc. to EN 1092-2 (no additional dismantling piece required) for horizontal installation between 2 fixed flanges (support bearing required for other mounting positions), integral flat gaskets, both flow directions possible (reversible 180 degrees), self-locking worm gear, test regulations: EN 1074-1, EN 1074-2, DVGW W 363, KTW, DVGW W 270, face-to-face dimension: standard series 14 acc. to DIN EN 558-1 for buried installation and plant installation. Material: Body / loose flanges: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute) Disk/shaft: stainless steel Seat gasket: EPDM (reinforced with a ring of stainless steel) acc. to DVGW W 270 and KTW Supporting ring: up to DN 300: POM, higher than DN 400: stainless steel Barrel gasket: EPDM acc. to DVGW W 270 and KTW Medium: potable water Type: A (plant installation) DN 600 PN 16	Height 35" (888 mm) Width 41.3" (1049 mm) Weight 992,08 LBS Delivery Time by appointment
Height 35" (888 mm) Width 41.3" (1049 mm) Weight 992, 08 LBS Delivery Time by appointment
