2" FNPT on request
989-01

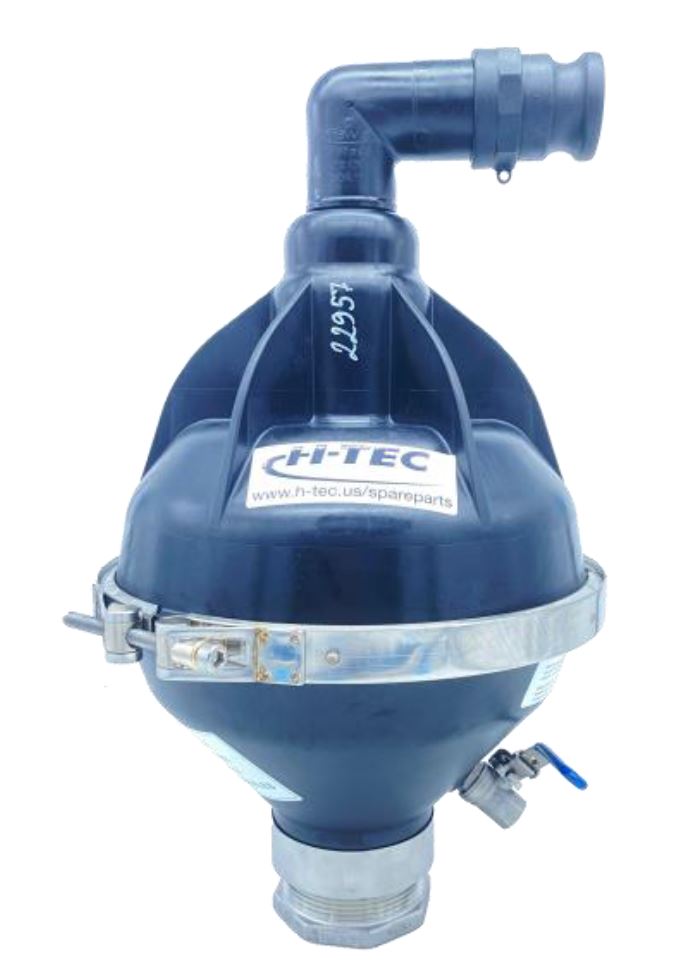

Automatic air release and vacuum valve, short body, Fiberglass Reinforced PA66
| Material: |
Body: Fiberglass reinforced PA Float Rod: Stainless Steel Outlet: Elbow Polyethylene Float: PP O-Ring: NBR Damper Ring: EPDM Diaphragm: HNBR Profile Clamp: Stainless Steel Ball Valve 3/8”: Stainless Steel Diaphragm Cup: POM Outer-ring: Stainless Steel |
|---|---|
| Medium |
For operating ranges: 0 – 150 PSI (10 Bar), outdoor application possible
Features:
Automatic and infinitely variable air valve for waste water.•Valve comes with a 316 Stainless Steel bushing allowing a 2" or 3" FNPT connection.
The low weight of the air valve allows for an easy and quick install.
Recommended for outdoor application in frost-free areas.•Maximum Operating Pressure: 150 PSI (10 Bar)•Operating Range: 0 – 150 PSI (0 - 10 Bar)
Valve body made of fiberglass reinforced PA 66.
Valve seat does not contact the media (air cushion).•All mechanical parts are manufactured of corrosion-resistant materials.
Valve Maintenance:
The valve can be quickly opened and closed during maintenance andcleaning due to the profile clamp made of stainless steel.
Air valves must be tested for function and maintained at least once per year.
|
Order Nr.
|
Status |
Height |
Range Of Pressure |
Width |
Connection |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
8889890066
|
in stock (shipment time 2 - 3 days) | 19.5" 495 mm |
0 - 150 PSI ( 0 - 10 bar) | 11.5" 292 mm |
3" FNPT | 12,13 LBS |
|
Technical Documents
|
|---|
| Datasheet - H-TEC Model 989-01 |
