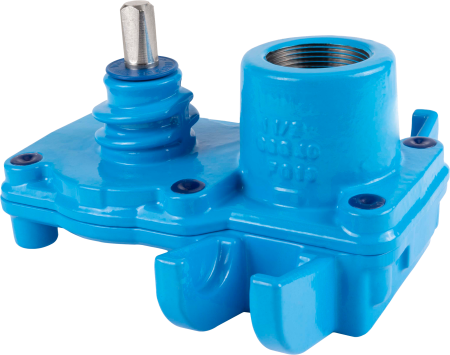

Universal HAWLINGER® pipe drilling saddle with integrated shut-off
For pipe type: AC, Cast Iron, Steel
Nominal width: female thread 1 1/2", female thread 1"
Drilling under operation: yes
max. drilling: 24, 36
Materials
Material: Ductile Iron (GJS-400) with internal and external epoxy powder coating
Medium: Potable Water
Medium: Potable Water
Further information
Description
Downloads
Description:
Maximum Operating Pressure: 250 PSI (17.2 Bar)
For Cast Iron, Ductile Iron and Steel pipes of 3” – 10” (DN 65 – 500) diameter.
Strap and saddle gasket not included – order Model 310, separately.
Advantages:
Use as isolation valve and tapping saddle under pressure.
