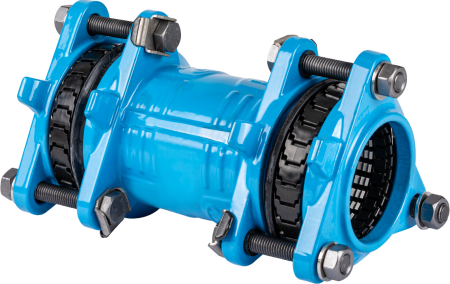

Connector Synoflex

Widest Range Restraint Model 741-00

Pipeline Repair - System Expansion - Valve Maintenance The Synoflex is an "all-in-one" socket coupling used to join and restrain various pipe materials, such as PE, HDPE, Ductile, Steel, and PVC pipes. Between its restraining and wide-range capabilities, the Synoflex will reduce installation time and cost compared to a standard coupling.


Features:

- Fully restraint coupling with the widest range
- Restraint coupling for use with PE, Ductile, Steel, and PVC pipes
- Seal to AC pipe
- Joins pipes of differing OD and compositions
- No need to change gasket or grip rings
- Size 1.5” through 16”, reducing couplings available on request
- Bolt head locking device for one hand tightening
- Pressure rated to 250 PSI / 17.2 bar
- Completely reusable and above ground capabilities
- 10-year factory warranty


Product details:

- Patented restraint system with flexible SYNOFLEX ring
- Stainless steel restraint elements
- Deflection of 8 degrees (+/- 4 degrees on each socket)
- Bolts of 316 stainless steel permanently lubricated, reversible 180º
- Body made of ductile with fluidized bed epoxy powder coating
- Uses potable and waste water
- Connections with PE pipes (PE > SDR 17), a support liner is required


Available dimensions:

Socket 1: Inch 1.5 to Socket 2: Inch 1.5

Socket 1: Inch 2 to Socket 2: Inch 2

Socket 1: Inch 2.5 to Socket 2: Inch 2.5

Socket 1: Inch 3 to Socket 2: Inch 3

Socket 1: Inch 4 to Socket 2: Inch 1.5

Socket 1: Inch 5 to Socket 2: Inch 5

Socket 1: Inch 6 to Socket 2: Inch 6

Socket 1: Inch 8 to Socket 2: Inch 8

Socket 1: Inch 9 to Socket 2: Inch 9

Socket 1: Inch 10 to Socket 2: Inch 10

Socket 1: Inch 12 to Socket 2: Inch 12

Socket 1: Inch 14 to Socket 2: Inch 14

Socket 1: Inch 16 to Socket 2: Inch 16


For further information please see datasheet (TECHNICAL DOCUMENTS)
