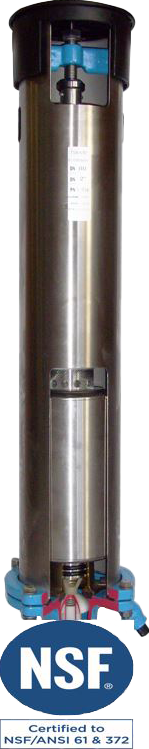

Model 992, HaVent Automatic Air Valve Set (valve with shaft for underground installation)

Name: Model 992, HaVent Automatic Air Valve Set (valve with shaft for underground installation)
SKU: 992-00-H
Availability: InStock

Medium

Models Product supplements

Technical features

Operating pressure	250 PSI (17.2 bar)
venting cross-section	2,33 in² (1.500 mm²)
Continuous operation	yes
Shortened	yes
Max. venting capacity	453,2 cfm (770 m³/h)

Materials

Standpipe: stainless steel
Base: GJS-400, Hawle epoxy powder coated
Bonnet: PE
Body air valve: stainless steel

Further information

Description Downloads

Models

Scroll to see more →

Grouped product items
Item number	Medium	Pipe Cover Depth	operating pressure	Connection	Type	A-Text
8889924208	water	3.3 ft (1.00 m)	250 PSI (17.2 bar)	2" FNPT	Thread	8889924208 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: Thread, FNPT 2" Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 3.3 ft (1.00 m)	Height 2.7 ft (815 mm) Weight 61,73 LBS Delivery Time by appointment
Height 2.7 ft (815 mm) Weight 61, 73 LBS Delivery Time by appointment
8889924211	water	4.2 ft (1.25 m)	250 PSI (17.2 bar)	2" FNPT	Thread	8889924211 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: Thread, 2" FNPT Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.2 ft (1.25 m)	Height 3.6 ft (1115 mm) Weight 72,75 LBS Delivery Time by appointment
Height 3.6 ft (1115 mm) Weight 72, 75 LBS Delivery Time by appointment
8889924213	water	4.9 ft (1.50 m)	250 PSI (17.2 bar)	2" FNPT	Thread	8889924213 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: Thread, 2" FNPT Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.9 ft (1.5 m)	Height 4.5 ft (1365 mm) Weight 77,16 LBS Delivery Time by appointment
Height 4.5 ft (1365 mm) Weight 77, 16 LBS Delivery Time by appointment
8889924216	water	5.7 ft (1.75 m)	250 PSI (17.2 bar)	2" FNPT	Thread	8889924216 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: Thread, 2" FNPT Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 5.7 ft (1.75 m)	Height 5.3 ft (1615 mm) Weight 83,78 LBS Delivery Time by appointment
Height 5.3 ft (1615 mm) Weight 83, 78 LBS Delivery Time by appointment
9925990065	water	3.3 ft (1.00 m)	250 PSI (17.2 bar)	3" / 150 lbs	Flange	9925990065 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: 3" Flange 150 lbs Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 3.3 ft (1.00 m)	Height 29,7" (755 mm) Weight 22,49 LBS Delivery Time by appointment
Height 29, 7" (755 mm) Weight 22, 49 LBS Delivery Time by appointment
9925990066	water	4.2 ft (1.25 m)	250 PSI (17.2 bar)	3" / 150 lbs	Flange	9925990066 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: 3" Flange 150 lbs Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 4.2 ft (1.25 m)	Height 41,5" (1055 mm) Weight 24,25 LBS Delivery Time by appointment
Height 41, 5" (1055 mm) Weight 24, 25 LBS Delivery Time by appointment
9925990067	water	4.9 ft (1.50 m)	250 PSI (17.2 bar)	3" / 150 lbs	Flange	9925990067 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: 3" Flange 150 lbs Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth 4.9 ft (1.5 m)	Height 51,4" (1305 mm) Weight 25,35 LBS Delivery Time by appointment
Height 51, 4" (1305 mm) Weight 25, 35 LBS Delivery Time by appointment
9925990068	water	5.7 ft (1.75 m)	250 PSI (17.2 bar)	3" / 150 lbs	Flange	9925990068 Specification: Automatic Air Valve Set Air Valve with Shaft for Underground Installation ( Model # 992-00 ) Automatic air valve with standpipe of stainless steel (replacing a shaft), 2” threaded connection or stainless steel 316 and of Ductile Iron (GJS-400), high-quality corrosion protection by fluidized bed epoxy powder coating inside and outside. The air release valve shall be a combination air/vacuum – double orifice automatic and infinitely air release valve. One 2” orifice and one 1” orifice for allow air to escape and enter in the event of a vacuum condition. The valve shall be of two piece body design. The valve shall be of corrosion free materials. Body shall be made of stainless steel 316. Float shall be expanded PP. The valve sealing is rubber made of EPDM. Standpipe of stainless steel suitable for above ground and underground installation, standpipe with drain-off fitting. The automatic air valve shall be removable under pressure and replaceable by a water tapping set. Air and vacuum valve sets shall be manufactured by Hawle. Medium: potable water Connection: 3" Flange 150 lbs Max. operating pressure: 250 PSI (17.2 bar) Pipe cover depth: 5.7 ft (1.75 m)	Height 61,2" (1555 mm) Weight 27,56 LBS Delivery Time by appointment
Height 61, 2" (1555 mm) Weight 27, 56 LBS Delivery Time by appointment
